性能特點

　　Performance Features

　　本設備采用先進的PLC集成控制，提升，移動，旋轉，運坯全部采用伺服系統定長 定點數字控制，具有操作智能化，定位準確，維修簡單，調整方便，運行可靠等特點，代表目前最先進的碼坯技術水平。在原有的技術基礎上增加了觸摸屏顯示，更加直觀，調整磚型，碼坯層數，速度百分比，運行狀態，磚機，切坯機控制等，一鍵操作，提高了生產效率，降低了工人操作技能要求，是現在磚廠的理想碼坯設備。

　　This equipment adopts advanced PLC integrated control, promotion, move, rotate, this machine all adopt the fixed-length fixed-point digital servo system control, intelligent operation, accurate positioning, simple maintenance, easy to adjust, reliable operation, etc, represent the most advanced setting technology. On the basis of the original technology increased the touch screen display, more intuitive, adjust the brick type, layer number of setting, percentage rate, running state, brick machine, cutter control, etc., a key operation, improve the production efficiency, reduce the workers operating skill, is an ideal setting to now brick factory equipment.

　　技術參數

　　Technical Parameters

　　型號：ZMP-3600X3600

　　生產頻率(秒/次)：30-50

　　最大碼坯高度：<1950

　　行走距離： 現場確定

　　裝機功率(KW)：18.2

　　外形尺寸長X寬X高：12500X3200X5900

•

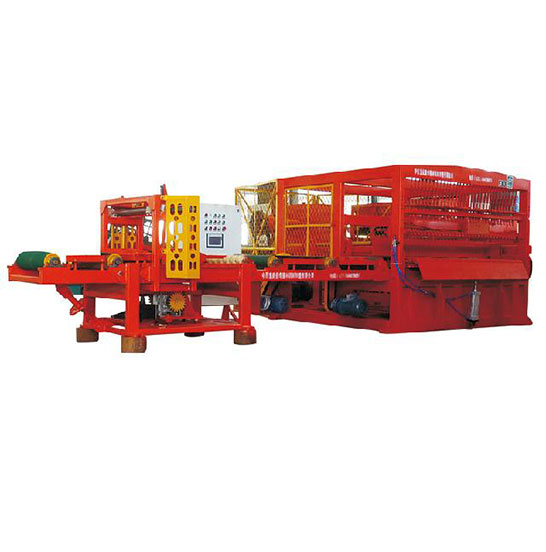

  碼坯機器人及編組系統

•

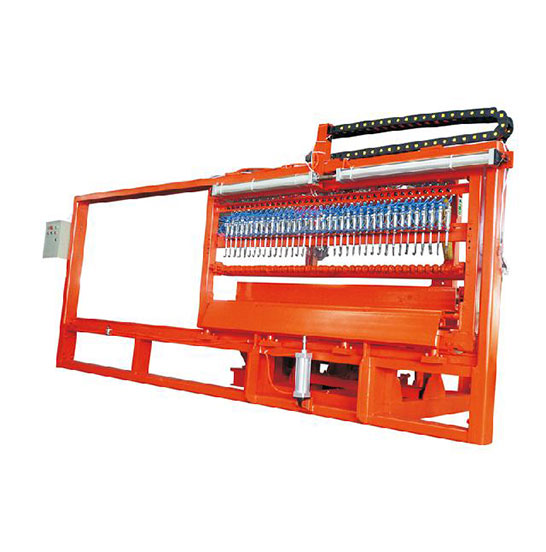

  磚機、切坯切條系統

•

  雙轉子錘式粉碎機

•

  JKY60/60-4.0雙級真空擠出機
